DatasheetSpecifications
| Measuring ranges: | -40°C to + 1000°C Temperature measurement 2050 0 – 250% adhesive monitoring 2000 |
| Spectral range | 8-14 μm |
| Emissivity correction | 1.0 to 0.1 adjustable on the base controller |
| Dimensions | Length 43mm x 18mm diameter with M18 x 1 thread |
| Permissible ambient temperature | -20°C to +50°C |
| Permissible humidity | 95% non-condensing |
| Distance to measurement spot | 1:1 e.g. 30 mm distance = 30 mm measuring spot |
| Accuracy | +/- 1% of reading |
| Repeat Precision | 0.5°C (0-100°C), 1.0°C (above 100°C) |
| Response time | 40ms |
| Resolution | 1/10°C |
| Outputs | 0-20mA, 4-20mA, 0-10VDC selectable on base controller |
| Weight | 180 grams (measuring head with 3 m cable including connector) |
| Protection class | IP64 with activated lens cleaning/air cooling by compressed air |
| Scope of delivery | Sensor with 3 m cable including connector and fastening screws, with air filter F110 |
| Conformity | RoHS Compliant, CE Mark |
| Article number | 0200208 |

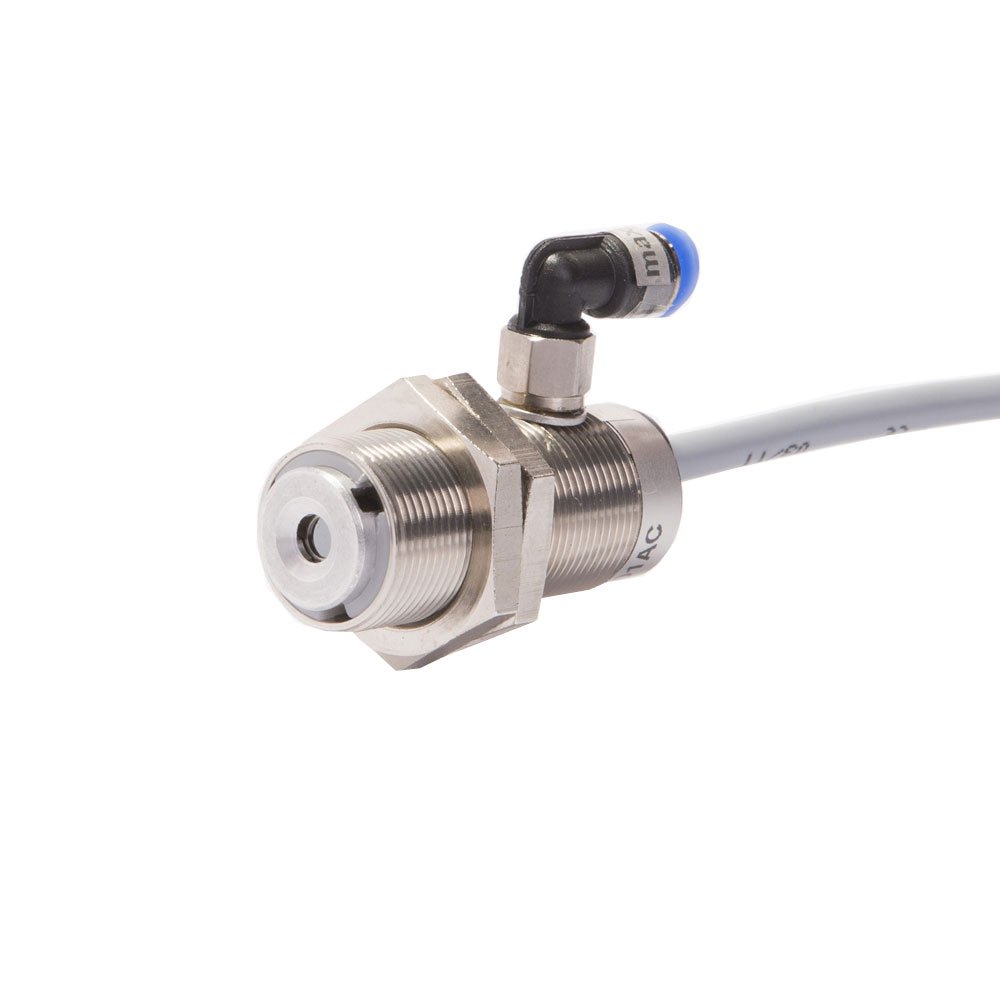

| The sensor is part of the complete infrared temperature measurement system 2050. | |
